| Part No |
90NX0731-M01J50 |
| Sales Model Name |
B3604CMA-Q91226 |
| EAN Code |
4711387953174 |
| UPC Code |
197105953178 |
| WEEE |
1.547 |
| BASE UNIT |
VSNX0731-BUA114 |
| Operating System |
Non-preinstalled OS |
| Office |
|
| LCD cover-material |
Aluminum |
| LCD cover-color |
Star Black |
| Top case-material |
Plastic |
| Top case-color |
Star Black |
| Bottom case-material |
Plastic |
| Bottom case-color |
Black |
| Military grade |
US MIL-STD 810H military-grade standard |
| Panel Size |
16.0-inch |
| Backlit |
LED Backlit |
| Brightness |
300nits |
| Resolution |
WUXGA (1920 x 1200) 16:10 |
| Glare |
Anti-glare display |
| Color gamut |
NTSC: 45% |
| View angle(H/V) |
178/178 |
| Response time(Typ/Max) (ms) |
11/9 |
| Refresh rate |
60Hz |
| Contrast (Typ) |
1000:1 |
| Touch Panel |
Non-touch screen |
| Screen-to-body ratio |
85 % |
| IPS-level |
Wide view |
| Processor |
Intel® Core™ Ultra 7 Processor 155H 1.4 GHz (24MB Cache, up to 4.8 GHz, 16 Cores)
Intel® AI Boost NPU |
| Neural processor |
Intel® AI Boost NPU |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Integrated GPU |
Intel® Graphics |
| VRAM |
N/A |
| How to upgrade memory |
Upgradable
Need to remove bottom/top case |
| Expansion Slot(includes used) |
2x DDR5 SO-DIMM slots
1x M.2 2230 PCIe 4.0x4
1x M.2 2280 PCIe 4.0x4 |
| DIMM Memory |
16GB DDR5 SO-DIMM |
| Total System Memory |
DDR5 16GB |
| Storage |
1TB M.2 2280 NVMe™ PCIe® 4.0 SSD
SSD Housing for storage expansion |
| Front-facing camera |
720p HD camera
With privacy shutter |
| Wireless |
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card |
| NumberPad |
N/A |
| FingerPrint |
FingerPrint |
| Keyboard type |
Backlit Chiclet Keyboard |

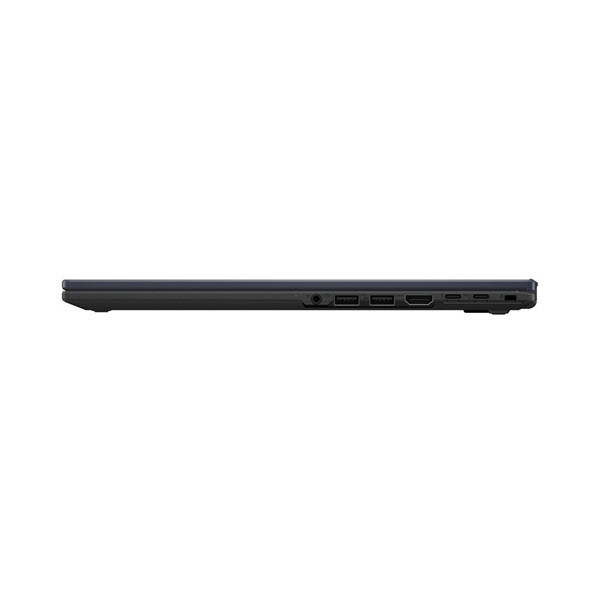

| I/O ports |
2x USB 3.2 Gen 2 Type-A
2x Thunderbolt™ 4, compliant with USB4, supports display / power delivery
1x HDMI 2.1 TMDS
1x 3.5mm Combo Audio Jack
1x RJ45 Gigabit Ethernet |
| Audio |
Audio by Dirac
Built-in speaker
Built-in array microphone |
| Battery |
50WHrs, 3S1P, 3-cell Li-ion |
| AC Adapter |
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal |
| Dimension (WxHxD) |
35.80 x 25.43 x 2.03 ~ 2.03 cm (14.09" x 10.01" x 0.80" ~ 0.80") |
| Weight (with Battery) |
1.90 kg (4.19 lbs) |
| Weight (w/o Battery) |
1.71 kg (3.77 lbs) |
| Security |
Fingerprint sensor integrated with Power Key
Kensington Nano Security Slot™(6x 2.5mm)
BIOS Booting User Password Protection
BIOS setup user password
HDD User Password Protection and Security
Support Absolute Persistence 2.0 (Computrace)
Trusted Platform Module (TPM) 2.0
N/A |
| Antivirus |
|
| MyASUS feature |
System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
AppDeals
Link to MyASUS |
| Built-in Apps |
MyASUS |
| Disclaimer for Built-in Apps |
Built-in Apps vary from OS SKU.
*MyASUS/McAfee don't support in Pure OS/without OS/G sku/Win SE/Windows on ARM/Linux OS (ex. Endless, Kylin, Ubuntu) |
| Reparability Index (for France) |
9.5 |
| Ecolabels & Compliances |
EPEAT Gold
Energy star 8.0
FSC Mix
REACH
RoHS
TCO Certified |
| Base Warranty |
3Y Pick up/ return |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warranty |
ACX13-007003NX//3Y OnSite Service(Next Business Day)*upgrade
ACX13-007023NX//2Y Extension
5Y OnSite Service(Next Business Day)*upgrade
ACX14-017300NX//3Y HDD Retention*upgrade
*If you would like to know the details, please contact your sales teams. |
| Battery warranty |
Commercial NB B series Battery warranty follow system warranty, 4Y-5Y by WEP option. |
| Sustainable Material_Top cover(A part) |
50% PIR recycled aluminum |
| Sustainable Material_Keyboard frame (C part) |
30% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Bottom cover (D part) |
35% PCR recycled plastic(cover or inner frame) |
| Sustainable Material_Battery |
|
| Sustainable Material_Keyboard |
50% PCR recycled plastic cap |
| Sustainable Material_Speaker |
45% PCR + 5% OBP PCR recycled plastic enclosure |
| Sustainable Material_Total PCR recycled plastic |
30.8% |
